Hydraulic Horizontal Baler Manufacturer in China
A Hydraulic Horizontal Baler is an industrial machine designed to compress and package large volumes of scrap materials into dense, manageable bales for storage, transportation, and recycling. As a professional ECOHYDRAULIC China Manufacturer and Supplier, we provide advanced hydraulic baling solutions widely used in the global scrap metal recycling industry.
Compared with other systems such as Hydraulic Vertical Baler and Scrap Metal Baler, the horizontal type is more suitable for continuous feeding, high-capacity processing, and automated operation.
Working Principle
Hydraulic Compression System
The machine uses a hydraulic cylinder to generate strong pressure, compressing loose scrap materials into high-density blocks.
Automatic Feeding and Pressing Cycle
- Material feeding through conveyor or manual loading
- Hydraulic cylinder applies multi-stage compression
- Bale forming and automatic ejection system
Types
- Single compression horizontal baler
- Double compression hydraulic baler
- Fully automatic continuous baler system
- Heavy-duty Scrap Metal Baler for industrial use
Applications in Recycling Industry
Hydraulic Horizontal Balers are widely used in metal recycling plants, steel mills, aluminum processing, and copper recycling industries. ECOHYDRAULIC machines are exported to more than 50 countries including USA, Russia, India, Vietnam, and Middle East regions.
- Steel scrap recycling industry
- Aluminum and non-ferrous metal processing
- Foundry and metallurgy industry
- Waste recycling and recovery stations
Technical Parameters
ECOHYDRAULIC China Manufacturer provides multiple models of Hydraulic Horizontal Baler designed for different scrap recycling capacities. The following parameters are for reference and can be customized according to production requirements.
Main Technical Data
| Model | Nominal Force | Main Cylinder Pressure | Motor Power | Feed Opening Size |
|---|---|---|---|---|
| ECOHYDRAULIC-HB100 | 1000 KN | 25 MPa | 22 kW | 1200 × 800 mm |
| ECOHYDRAULIC-HB200 | 2000 KN | 28 MPa | 37 kW | 1600 × 1000 mm |
| ECOHYDRAULIC-HB500 | 5000 KN | 31.5 MPa | 90 kW | 2000 × 1200 mm |
Bale Specification
| Model | Bale Size | Bale Density | Discharge Type | Operation Mode |
|---|---|---|---|---|
| ECOHYDRAULIC-HB100 | 300 × 300 mm | ≥ 1800 kg/m³ | Turn-out / Push-out | Semi-automatic |
| ECOHYDRAULIC-HB200 | 400 × 400 mm | ≥ 2000 kg/m³ | Side push-out | Automatic |
| ECOHYDRAULIC-HB500 | 500 × 500 mm | ≥ 2200 kg/m³ | Front push-out | Fully automatic |
Production Performance
- Processing capacity: 2 – 15 tons/hour depending on model
- Bale forming time: 20 – 60 seconds per cycle
- Continuous feeding system available for high-output lines
- Hydraulic system designed for 24-hour industrial operation
General Machine Configuration
- Hydraulic pump system (high-pressure industrial grade)
- Wear-resistant pressing chamber structure
- PLC control system (optional automatic version)
- Industrial cooling system for continuous operation
- Safety interlock protection system
- View as

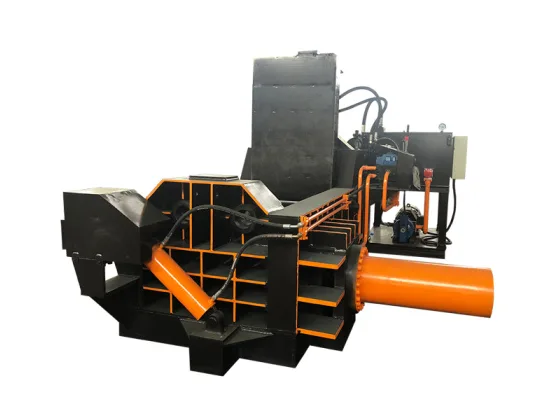

Horizontal Aluminum Baler
As a China Manufacturer, Supplier, and Factory, we provide durable Horizontal Aluminum Baler. It features continuous feeding, strong compression force, and stable performance, helping improve storage, transport efficiency, and recycling value in global scrap metal processing plants.

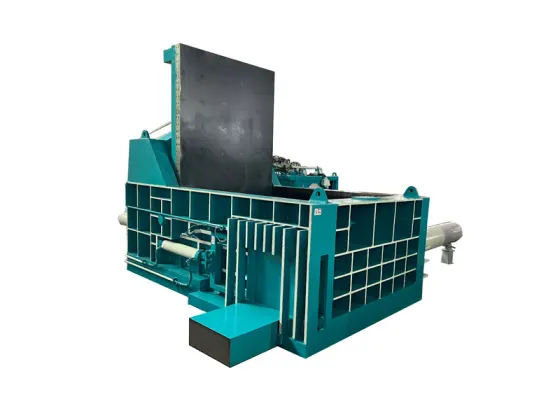

Horizontal Steel Baler
ECOHYDRAULIC Horizontal Steel Baler is a hydraulic recycling machine designed for compressing loose steel scrap into compact, high-density bales for easier handling and transport. As a China manufacturer and supplier, it delivers stable performance for heavy-duty metal processing.
Key benefits include:
High compression efficiency for steel scrap
Reduced storage and logistics cost
Suitable for continuous industrial operation
Key benefits include:
High compression efficiency for steel scrap
Reduced storage and logistics cost
Suitable for continuous industrial operation
Advantages of Our Horizontal Baler
- High compression force for dense bale formation
- Stable hydraulic system with long service life
- Easy integration into automated recycling lines
- Low energy consumption and high efficiency
- CE and ISO 9001 certified manufacturing standards
- Over 4000 installed systems worldwide by ECOHYDRAULIC China Factory
How to Choose the Right Model?
- Material type: steel, aluminum, copper, mixed scrap
- Production capacity requirement
- Automation level (manual, semi-automatic, fully automatic)
- Workshop space and layout
- Export destination standards and voltage requirements
Hydraulic Horizontal Baler Price & Solution
The price of Hydraulic Horizontal Baler depends on capacity, configuration, automation level, and customization requirements. As a direct ECOHYDRAULIC Factory in China, we provide cost-effective solutions without middlemen, ensuring competitive pricing and reliable performance.
Customized solutions are available for global clients, including turnkey recycling line integration, technical support, and overseas after-sales service.
ECOHYDRAULIC is a professional Hydraulic Horizontal Baler manufacturer and supplier in China. Welcome to import quality products from our factory here.
